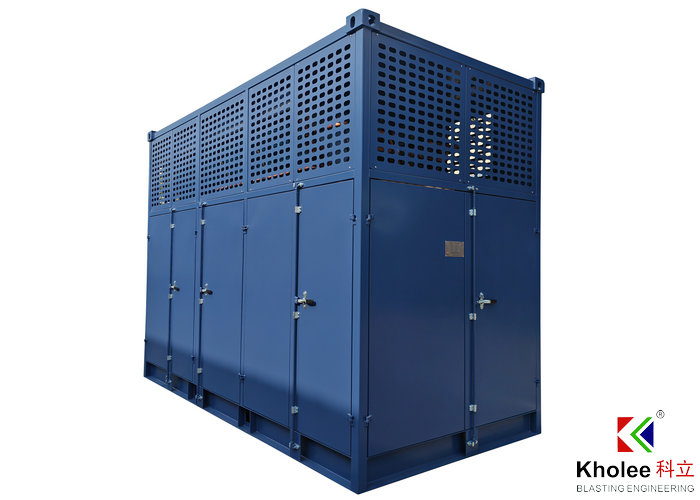

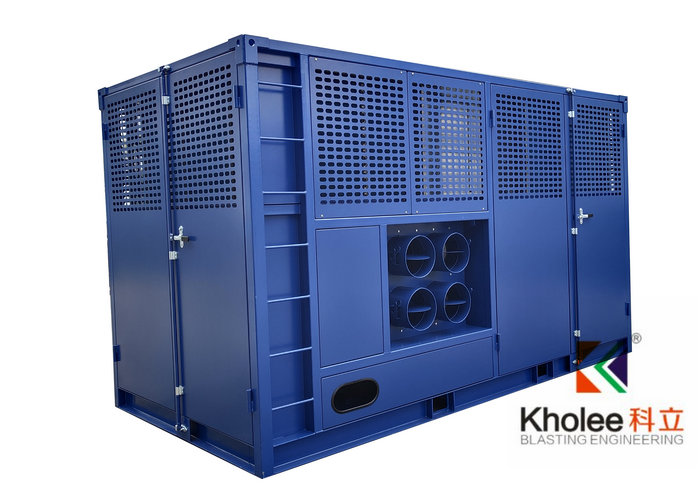

KL-LFZ Air Cooled Dehumidifier

  • Place Of Origin: China
  • Control Type: PLC control
  • Usage: Control Temp & RH
  • Application: Blasting Painting
  • Product description:Air Cooled dehumidifier used in shipyard, marine offshore, oil & gas tank, shipbuilding is to control temperature and RH% during blasting & painting. More information, email us: kholeeblast@gmail.com
  • INQUIRY

The Air-Cooled Dehumidifiers are used for drying air of up to 95% relative humidity (RH) with temperatures from +15ºC to +40ºC. It is widely used in the area of Southeast Asia, South America with tropic and sub-tropic climate.

The applications are numerous and wide spread. Below are some examples:

- Surface treatment during internal blasting and painting of tanks

- Shipping industry, both for permanent and temporary applications

- Controlling humidity levels in production processes

- Protection of equipment sensitive to corrosion

- Climatic improvements in damp areas

Air Cooled Dehumidifier is delivered as a complete unit with fans, filters, condenser, evaporator, compressor and controls. The dehumidifier is ready for site installation and connection to standard-size ducting. Each dehumidifier will be custom designed according to the local conditions and the needs of the customer

AIR COOLED DEHUMIDIFIER FOR TROPICAL & SUBTROPICAL REGIONS

Model

KL-LFZ6000

KL-LFZ9000

KL-LFZ12000

KL-LFZ18000

Process Airflow (m3/hr)

6000

9000

12000

18000

Compressor Power (KW)

38

45

60

90

Process Air Fan (KW)

7.5

11

15

22

Reheating Power (KW)

27

36

45

80

Outlet connection (MM)

Φ250×2

Φ250×3

Φ250×4

Φ250×6

Total Power (KW)

76.9

100

131

214

Equipment Size (MM)

3400×2000×2450

3600×2050×2500

3800×2100×2550

5200×2200×2800

Weight (T)

3.2

3.5

3.8

4.5

Machine Structure

Movable Containerized

Temperature Control

High sensitive temperature sensor + PLC control + Touch Screen Display

Condenser

Copper Tube + Aluminium Fins with galvanized casing

Evaporator

Copper Tube + Aluminium Fins with galvanized casing

Or Copper Tube + Copper Fins with stainless steel casing

Air Intake Condition

Temperature: 15~40°C RH≤95%

Air Discharge Condition

Temperature: 25±3°C RH≤45%

Air Discharge Pressure

≥ 1200~2500Pa

Electrical Control

100% refrigeration + 100% Heating

Note (All Models):

1. Power supply: 3-phase plus earth 380V/ 415V / 50 Hz

2. Refrigerant: R22, OTHER REFRIGERANT FOR OPTIONAL SUCH AS R134A

3. Cooling step control: 25%~50%~75%~100%

4. Cooling Media: Air

5. Discharge condition: 25 ± 3 °C/RH below 45%

6. We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.

DIMENSION OF AIR COOLED DEHUMIDIFIER

Model

KL-LFZ6000

KL-LFZ9000

KL-LFZ12000

KL-LFZ18000

LENGTH A (MM)

3400

3600

3800

5200

WIDTH B (MM)

2000

2050

2100

2200

HEIGHT C (MM)

2450

2500

2550

2800

FORKLIFT D (MM)

1400

1400

1400

1400
