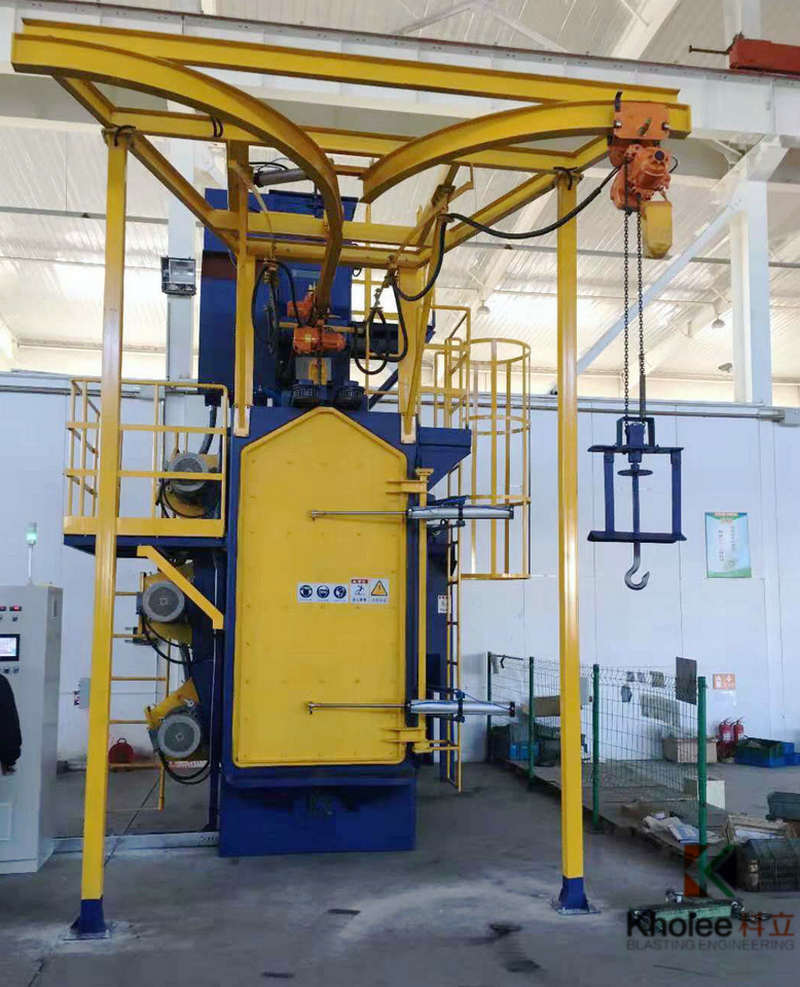

Overhead Monorail Shot Blast Cleaning Machine

Place Of Origin: China
Working Type: Wheel Blasting
Usage: Remov Rust, Oxide Layers, Sand
Blasting Abrasive：Steel Shots & Grits
Product description：Overhead Monorail Shot Blast Cleaning Machine from Kholee Blast China is among the most flexible types of blasting equipment, available semi automatic or fully automatic. The workpieces are suspended
INQUIRY

Overhead Monorail Shot Blast Cleaning Machine is among the most flexible types of blasting equipment, available semi automatic or fully automatic. The workpieces are suspended on hangers and carried into blasting chamber. They are used to remove rust, scale, sand and burrs from many kinds of work pieces such as castings, forgings, cylinder blocks, cylinder heads, tractor and diesel engine components and fabricated structures. Overhead Monorail Shot Blast Cleaning Machine is also used for the finishing blasting of sensitive work pieces or to roughen work piece surfaces for subsequent coating.

The equipment is comprised of overhead conveyor hoist system, shot blasting chamber, blasting turbine, shots recycle system, dust removing system and electrical control system etc.

OVERHEAD MONORAIL SHOT BLAST CLEANING MACHINE
Model	Hook Qty	Size of products	Blasting Turbine	Hook Loading Capacity
KLQ376-2	1 No.s	Φ600×1100 mm	120kw × 2	600 kgs
KLQ376-2E	2 No.s	Φ600×1100 mm	200kw × 2	600 kgs
KLQ378-2	1 No.s	Φ800×1500 mm	200kw × 2	800 kgs
KLQ378-2E	2 No.s	Φ800×1500 mm	250kw × 2	800 kgs
KLQ3710-3	1 No.s	Φ1000×1850 mm	200kw × 3	1000 kgs
KLQ3710-3E	2 No.s	Φ1000×1850 mm	200kw × 3	1000 kgs
KLQ3720-3E	2 No.s	Φ1400×2300 mm	200kw × 3	2000 kgs
KLQ3730-4	1 No.s	Φ1600×2200 mm	200kw × 4	3000 kgs
KLQ3750-5	1 No.s	Φ1800×2500 mm	200kw × 5	5000 kgs

Note:

- Kholee Blast also designs and manufactures non-standard overhead monorail shot blast cleaning machine according to clients’ requirements and work-pieces size.

- We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.
