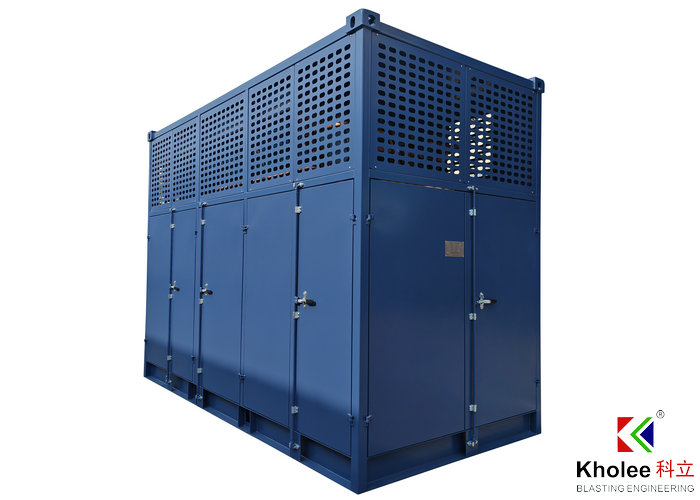

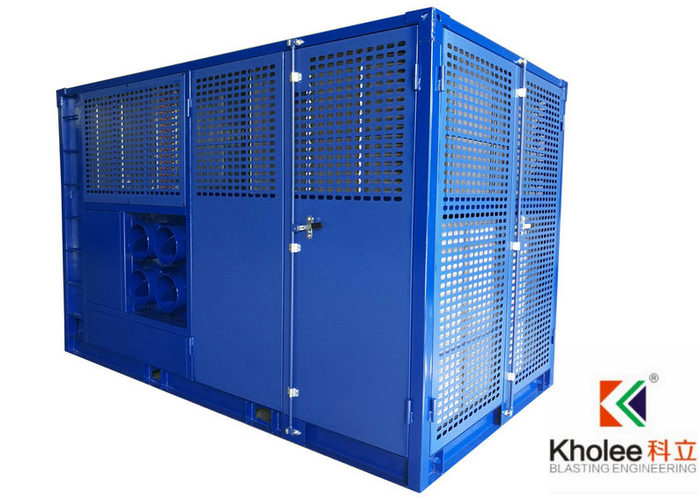

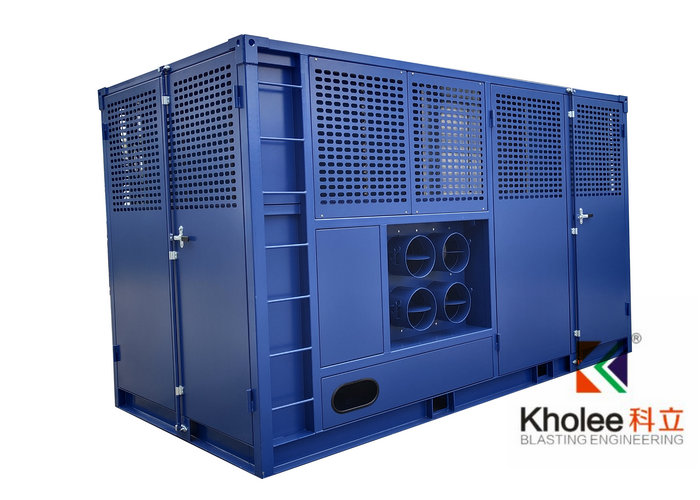

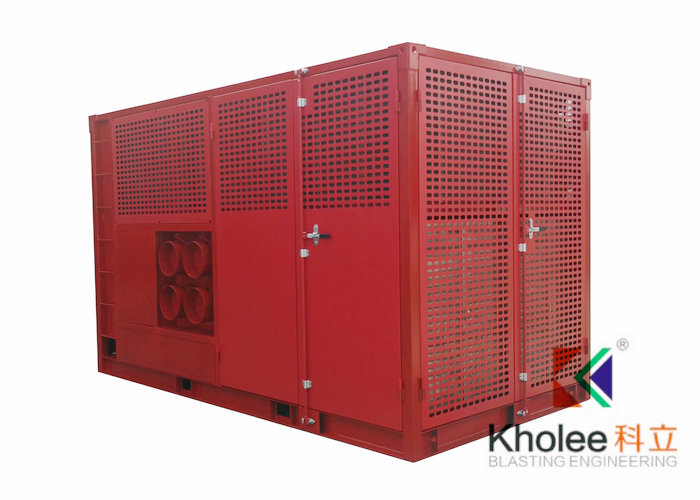

Eco-Friendly Air Cooled Dehumidifier for Blasting Painting

Place Of Origin: China
Control Type: PLC control
Usage: Control Temp & RH
Application: Blasting Painting
Product description：Eco-friendly air cooled dehumidifier from Kholee Blast is used to process inlet air +17°C~+40°C/≤95% RH and supplies outlet air 25°C/45%. Ideal for equatorial/tropical Southeast Asia’s marine, shipyar
INQUIRY

The Eco-Friendly Air-Cooled Dehumidifiers are used for drying air of up to 95% relative humidity (RH) with temperatures from +15ºC to +40ºC. It is widely used in the area of Southeast Asia, South America with tropic and sub-tropic climate. The eco-friendly dehumidifier adopts R134A as refrigerant. Compared with R22 freon, R134A is no harmful to ozonosphere.

The applications are numerous and wide spread. Below are some examples:

- Surface treatment during internal blasting and painting of tanks

- Shipping industry, both for permanent and temporary applications

- Controlling humidity levels in production processes

- Protection of equipment sensitive to corrosion

- Climatic improvements in damp areas

Eco-Friendly Air Cooled Dehumidifier is delivered as a complete unit with fans, filters, condenser, evaporator, compressor and controls. The dehumidifier is ready for site installation and connection to standard-size ducting. Each dehumidifier will be custom designed according to the local conditions and the needs of the customer.

ECO-FRIENDLY AIR COOLED DEHUMIDIFIER FOR TROPICAL & SUBTROPICAL REGIONS
Model	KL-LFZ6000EF	KL-LFZ9000EF	KL-LFZ12000EF	KL-LFZ18000EF
Process Airflow (m3/hr)	6000	9000	12000	18000
Compressor Power (KW)	30	45	60	90
Process Air Fan (KW)	7.5	11	15	22
Reheating Power (KW)	27	36	45	80
Outlet connection (MM)	Φ280×2	Φ250×4	Φ280×4	Φ280×6
Total Power (KW)	76.9	100	131	214
Equipment Size (MM)	3400×2000 ×2450	3600×2050 ×2500	3800×2100 ×2550	5200×2200 ×2800
Weight (T)	3.2	3.5	3.8	4.5
Machine Structure	Movable Containerized
Temperature Control	High sensitive temperature sensor + PLC control + Touch Screen Display
Condenser	Copper Tube + Aluminium Fins with galvanized casing
Evaporator	Copper Tube + Aluminium Fins with galvanized casing Or Copper Tube + Copper Fins with stainless steel casing
Air Intake Condition	Temperature: 15~40°C， RH≤95%
Air Discharge Condition	Temperature: 25±3°C， RH≤45%
Air Discharge Pressure	≥ 2000Pa
Electrical Control	100% refrigeration + 100% Heating PLC + Touch Screen

Note (All Models):

1. Power supply: 3-phase plus earth 380V/ 415V / 50 Hz

2. Refrigerant: R134A

3. Cooling step control: 25%~50%~75%~100%

4. Cooling Media: Air

5. Discharge condition: 25 ± 3 °C/RH below 45%

6. We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.

Dimension of Eco-Friendly Air Cooled Dehumidifier
Model	KL-LFZ6000EF	KL-LFZ9000EF	KL-LFZ12000EF	KL-LFZ18000EF
Length A (mm)	3400	3600	3800	5200
Width B (mm)	2050	2050	2100	2200
Height C (mm)	2450	2500	2500	2800
Forklift D (mm)	1400	1400	1400	1400
