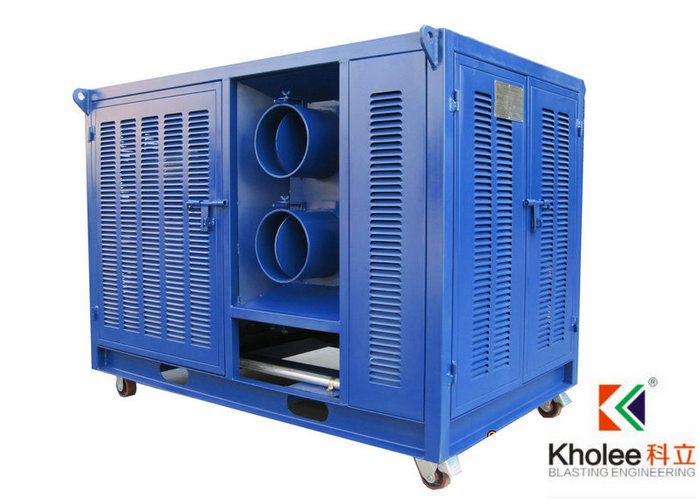

KHOLEE BLAST Portable Air heating unit is engineered specially for use in cold climate conditions or in winter of temperate regions. It is widely used in shipyard, marine offshore, oil & gas tank especially for those working environment need air recycle, heating and temperature balance. Portable air heater from Kholee Blast is a perfect heating unit for special coating in cold climate regions.
The system has the following usages:
- To improve temperature of a chamber as to satisfy technical requirements and improves working efficiency
- Its heating effect improves working environment, and enhances working productivity.
- The unit comes complete with a specially designed control panel and can be easily transported by cranes or forklift.
|
PORTABLE AIR HEATER / AIR HEATING UNIT |
|||||
|
Model |
KL-NF6000 |
KL-NF9000 |
KL-NF12000 |
KL-NF15000 |
KL-NF18000 |
|
Process Airflow (m3/hr) |
6000 |
9000 |
12000 |
15000 |
18000 |
|
Outlet Air Pressure (Pa) |
≥1200 |
≥1200 |
≥1200 |
≥1200 |
≥1800 |
|
Process Air Fan (kw) |
5.5 |
7.5 |
11 |
15 |
22 |
|
Heating material |
Stainless heating coil |
||||
|
Heating Power (kw) |
60 |
90 |
120 |
150 |
180 |
|
Total Power (kw) |
66 |
98 |
131 |
165 |
202 |
|
Heating Loading |
33% -67%-100% |
25%-50%75%-100% |
|||
|
Air Inlet Temperature |
Temp -10°C ~40°C / RH 60%~95% |
||||
|
MAX Temperature Risen |
≤ 30°C |
≤ 30°C |
≤ 30°C |
≤ 30°C |
≤ 30°C |
|
Outlet connection (mm) |
Φ250×2 |
Φ250×3 |
Φ250×4 |
Φ300×4 |
Φ600×1 |
|
Temperature Control |
Temperature Display + Control |
||||
|
Electrical Control |
Power Leakage + Wrong Phase + Short Phase + High Low Voltage + Overload Protection, self-diagnose |
||||
|
Failure Display |
Phase Protection, Over Temperature Alarming + Overload Protection Etc |
||||
|
Equipment Size (mm) L×W×H |
2000×1200 ×1300 |
2100×1400 ×1300 |
2100×1400 ×1300 |
2100×1400 ×1400 |
2250×1500 ×1400 |
|
Weight (kg) |
≤700 |
≤800 |
≤900 |
≤1000 |
≤1200 |
|
Equipment Structure |
Movable Containerized |
||||
NOTE:
1. Power supply: 3-phase plus earth 380V/ 415V / 50 Hz
2. TEMPERATURE RISEN: ≤30°C
3. We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.
