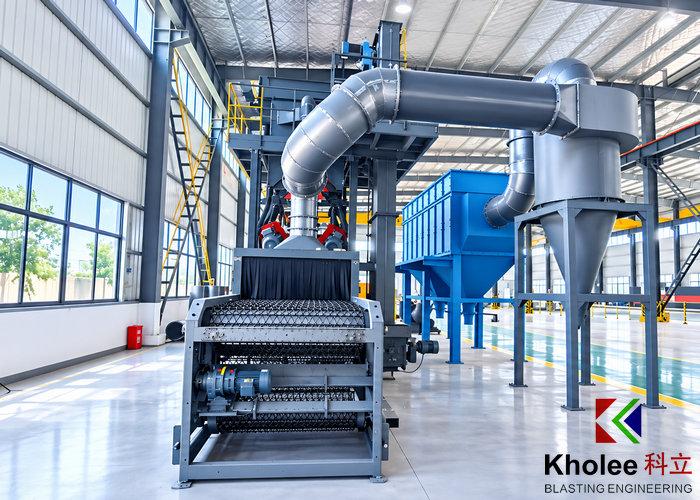

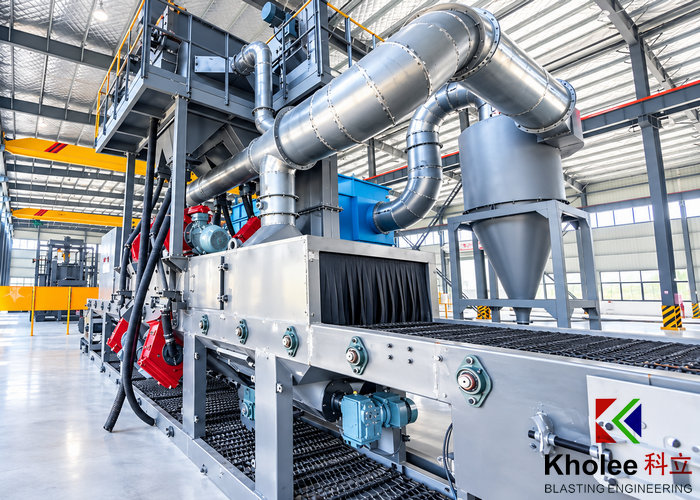

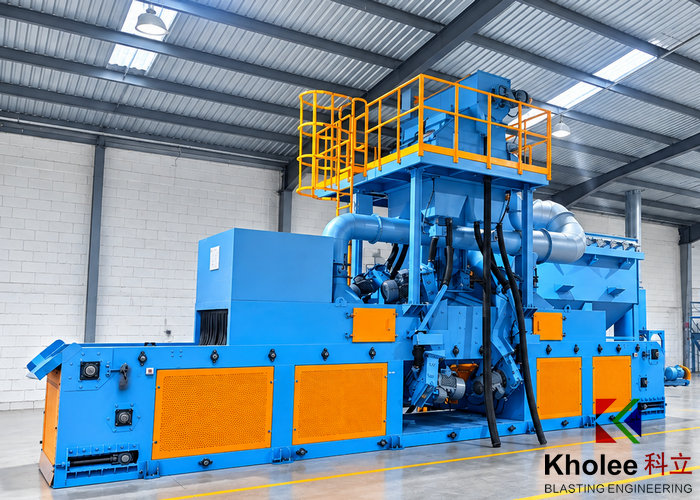

KLWD1300-8 Wire Mesh Belt Auto Shot Blast Machine

Wire Mesh Belt Auto Shot Blasting Machine

Automatic Wire Mesh Belt Auto Shot Blasting Machine for Small Parts and Complex Components

KHOLEE BLAST Wire Mesh Belt Shot Blasting Machine is an automatic continuous-pass wheel blasting system designed for cleaning, descaling, and surface preparation of small metal parts, thin-wall castings, aluminum alloy components, die castings, forgings, and other industrial workpieces.

Equipped with a heat-resistant wire mesh conveyor belt and strategically positioned centrifugal blast wheels, this automatic wire mesh belt shot blasting machine propels high velocity Steel Shot or other suitable metallic abrasives onto workpiece surfaces from multiple directions. It effectively removes rust, oxide scale, residual foundry sand, and other surface contaminants, preparing components for painting, coating, assembly, or subsequent manufacturing processes.

KHOLEE BLAST offers configurable wire mesh belt shot blasting solutions with 4 ~10 blast wheels, adjustable conveyor speeds, integrated abrasive recovery, and industrial dust collection systems. Typical conveyor belt widths range from 1000 to 1,500 mm, depending on the machine configuration.

Our wire mesh belt blasting machines are suitable for foundries, automotive component manufacturers, machinery factories, metalworking facilities, and automated production lines requiring consistent surface cleaning and efficient material handling.

Main Components of a Wire Mesh Belt Shot Blasting Machine

Wire Mesh Conveyor Belt | Shot Blasting Chamber | Centrifugal Blast Wheels | Abrasive Recovery and Circulation System | Abrasive Separator | Industrial Dust Collector | Electrical Control System

How Does a Wire Mesh Belt Shot Blasting Machine Work?

A wire mesh belt shot blasting machine uses centrifugal blast wheels to propel abrasive media against workpiece surfaces while a conveyor moves the components through an enclosed blasting chamber.

Step 1: Workpiece Loading

Step 2: Continuous Conveying

Step 3: Centrifugal Abrasive Blasting

Step 4: Multi-Directional Surface Treatment

Step 5: Abrasive Recovery and Separation

Step 6: Dust Extraction

Step 7: Workpiece Discharge and Inspection

Wire Mesh Belt Shot Blasting Machine Applications

KHOLEE BLAST wire mesh belt shot blasting machines are designed for continuous surface cleaning and preparation of small and medium-sized industrial components.

Typical applications include Foundry cleaning | Automotive component production | Machinery manufacturing | Metal fabrication | Selected specialized components | Forging Parts

Typical Technical Specifications

How to Choose a Wire Mesh Belt Shot Blasting Machine?

Selecting the right wire mesh belt shot blasting machine requires evaluating the workpieces, required surface condition, production capacity, and available factory space.

1. Workpiece Dimensions and Weight

2. Workpiece Material and Impact Sensitivity

3. Required Surface Cleanliness

4. Required Production Capacity

5. Abrasive Type and Recovery System

6. Factory Layout and Automation

7. Confirm the Solution Through Workpiece Trials

For thin-wall castings, aluminum components, complex geometries, and sensitive surfaces, workpiece trials can help verify cleaning quality and identify suitable process parameters.

Frequently Asked Questions

Q1. What is a wire mesh belt shot blasting machine?

A wire mesh belt shot blasting machine is an automatic surface treatment system that transports components through an enclosed blasting chamber on a metal mesh conveyor. Centrifugal blast wheels propel abrasive media against the workpieces to remove rust, oxide scale, residual sand, and other surface contaminants.

Q2. What parts can be processed in a wire mesh belt shot blasting machine?

Typical applications include small iron and aluminum castings, thin-wall castings, gears, forged parts, formed components, die castings, and selected flat metal parts. Workpiece size, weight, shape, and impact sensitivity should be evaluated before selecting the machine.

Q3. Is a wire mesh belt shot blasting machine suitable for aluminum castings?

Yes. Many aluminum alloy castings can be processed when the abrasive type, blast wheel settings, conveyor speed, and exposure time are appropriately selected. Trial blasting is recommended for thin-wall or precision components to minimize the risk of surface damage or deformation.

Q4. What is the difference between a wire mesh belt and a tumble belt shot blasting machine?

A wire mesh belt machine carries workpieces through the blasting chamber on a mesh conveyor. A tumble belt machine repeatedly tumbles parts during processing. The wire mesh belt design is often preferable for flat, thin-wall, or collision-sensitive components that should not undergo extensive part-to-part impact. The final choice depends on workpiece geometry and processing requirements.

Q5. What conveyor speed is available?

Typical conveyor speeds range from 0.6 to 3 m/min, depending on the machine configuration.

The appropriate speed depends on workpiece geometry, contamination level, required surface cleanliness, abrasive performance, and production targets.

Q6. What conveyor belt widths are available?

Typical wire mesh belt widths range from 1,000 to 1,500 mm. The required width depends on workpiece dimensions, loading arrangement, and production capacity. Confirm the available width for the selected model with KHOLEE BLAST.

Q7. Can the machine remove rust, oxide scale, and residual foundry sand?

Yes. Properly configured abrasive blasting can remove rust, oxide scale, residual foundry sand, and other surface contaminants.

Burr removal depends on burr size, material properties, and blasting conditions. Some components may still require a separate mechanical deburring process.

Q8. Should I choose a four-wheel or eight-wheel shot blasting machine?

The choice depends on workpiece geometry, required surface coverage, and production capacity.

Four-wheel configurations may be suitable for many standard applications, while eight-wheel arrangements can provide additional blasting directions or capacity. The best configuration should be determined from the actual workpiece and cleaning requirements.

Q9. Does a wire mesh belt shot blasting machine include an abrasive recycling system?

An integrated abrasive circulation and separation system is part of the typical configuration described for KHOLEE BLAST wire mesh belt shot blasting machines. The specific recovery components and layout should be confirmed in the final machine proposal.

Q10. Can the machine be integrated into an automatic production line?

Yes. Its continuous conveyor design supports production-line integration. The required infeed and outfeed connections, automation interfaces, loading equipment, and safety interlocks depend on the factory layout and project requirements.

Q11. How do I determine the production capacity?

Production capacity depends on conveyor speed, blast wheel configuration, workpiece size, loading density, surface contamination, and required cleaning results.

Provide the workpiece dimensions, individual weight, target output in pieces per hour or kilograms per hour, and required surface condition so that the machine configuration can be evaluated.

Q12. What information is required for a quotation?

To obtain a suitable wire mesh belt shot blasting machine proposal, please provide:

Workpiece photographs or technical drawings.

Workpiece material and maximum dimensions.

Individual workpiece weight.

Initial surface condition and contaminants to be removed.
