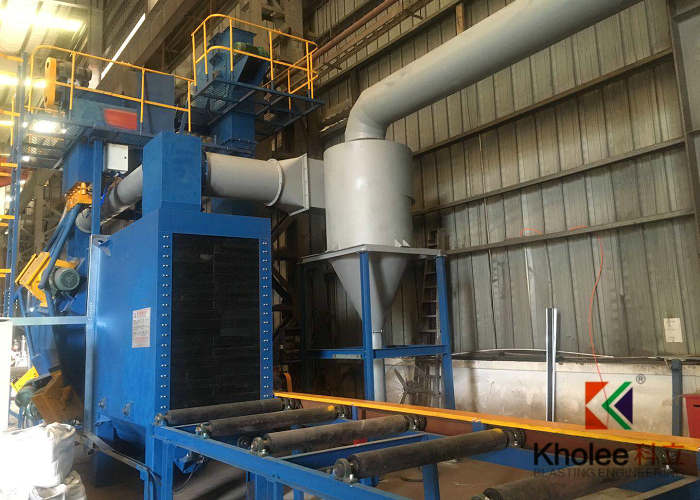

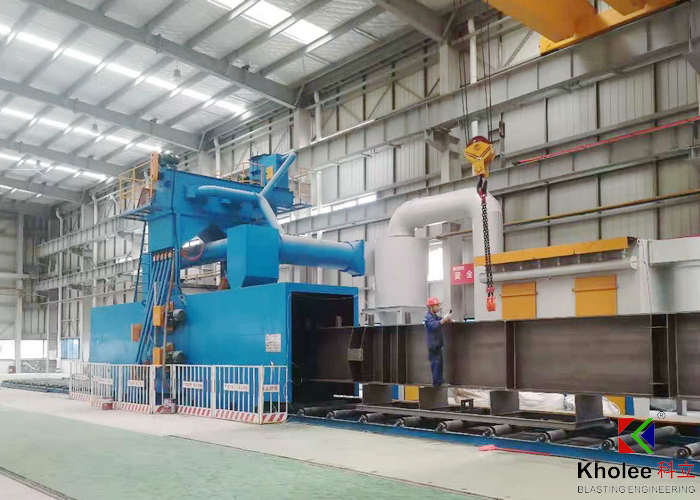

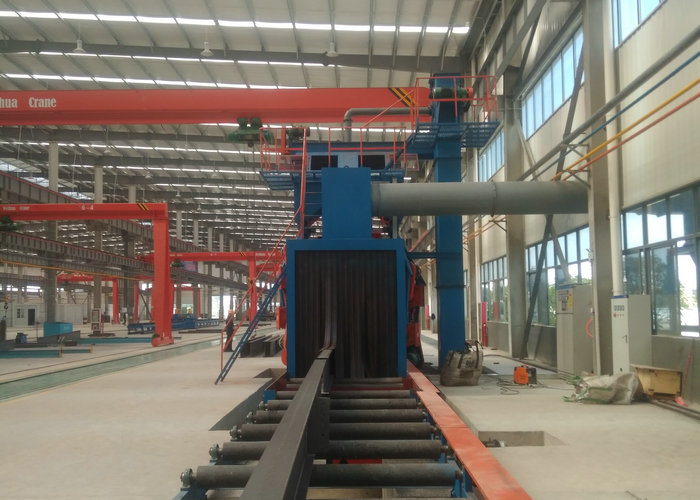

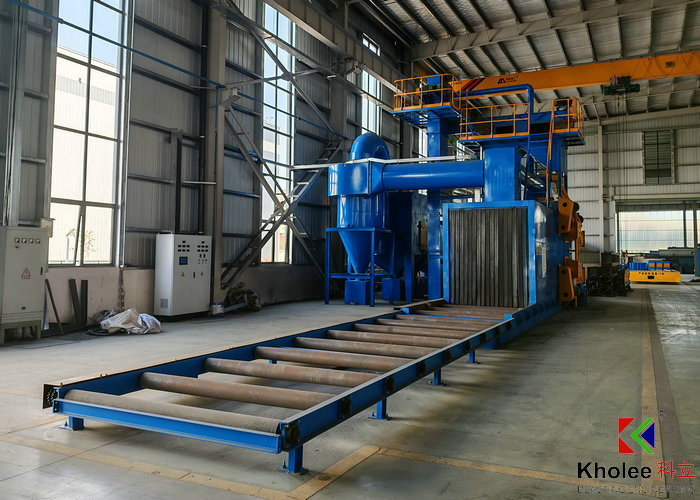

Roller Conveyor Shot Blasting Machine

Roller Conveyor Shot Blasting Machine

Automatic Shot Blasting Machine for H Beams, Steel Profiles & Welded Structures Surface Preparation

Roller Conveyor Shot Blasting Machine is an automatic wheel blasting system designed for surface preparation of H beams, I beams, box beams, angle steel, channel steel, steel plates, pipes and welded structural steel components.

Using high-speed Steel Shot or Steel Grit propelled by centrifugal blast wheels, the machine removes rust, mill scale, welding slag, oxide layers and surface contamination while creating a controlled surface profile for subsequent painting, coating or corrosion protection.

Kholee Blast designs and manufactures customized roller conveyor shot blasting machines according to workpiece dimensions, production capacity, required surface cleanliness and workshop layout.

What Is a Roller Conveyor Shot Blasting Machine?

---

A roller conveyor shot blasting machine is an automated industrial surface preparation system used to clean and prepare structural steel by blast wheel before painting, coating, fabrication or delivery.

The machine typically integrates:

In-feeding roller conveyor | Shot blasting chamber | High-efficiency blast wheels | Abrasive circulation and recovery system | Dust collection system | Out-feeding roller conveyor |Electrical control system

This configuration is particularly suitable for continuous production of H beams, I beams and other fabricated steel profiles.

How Does a Roller Conveyor Shot Blasting Machine Work?

The typical working process is:

Steel Structure → In-feeding Roller Conveyor → Shot Blasting Chamber → Abrasive Recovery → Separation → Dust Collection → Clean Steel Structure → Out-feeding Roller Conveyor → Painting / Coating

Roller Conveyor Shot Blasting Machine Applications

The machine can be configured for different structural steel products and production processes.

Typical applications: Steel Structure Fabrication | PEB Manufacturing | Bridge Construction | Shipbuilding | Heavy Machinery | Pressure Vessel | Oil & Gas Equipment | Steel Service Centers

Typical Technical Specifications

How to Select a Roller Conveyor Shot Blasting Machine?

Before requesting a quotation, provide the following information:

1.Workpiece Dimensions:

Maximum width / Maximum height / Maximum length

2. Workpiece Weight

Maximum weight per piece / Maximum load per meter / Typical workpiece weight

3. Production Capacity

Pieces per hour / Tons per day / Tons per month

4. Surface Preparation Requirement

Sa 2.5 / Sa 3 / Surface roughness

5. Workshop Conditions

Available length / Available width / Available height / Crane capacity

6. Material loading & unloading direction

This information allows the machine configuration, blast-wheel quantity, conveyor system, dust collector and abrasive circulation capacity to be selected correctly.

Roller Conveyor Shot Blasting Machine Benefits

● Automatic Production

Continuous roller conveying reduces manual handling.

● Consistent Surface Preparation

Multiple blast wheels provide controlled and repeatable abrasive coverage.

● High Productivity

Designed for continuous industrial steel fabrication.

● Abrasive Recycling

Reusable steel shot is automatically recovered and separated.

● Lower Manual Labor

The automated system reduces manual surface cleaning operations.

● Easy Integration

Can be connected with steel fabrication, painting and drying processes.

● Customized Design

Machine dimensions and configuration can be adapted to different structural steel products.

Frequently Asked Questions

Q1: What is a Roller Conveyor shot blasting machine?

A1: A Roller Conveyor shot blasting machine is an automated wheel blasting system used to remove rust, mill scale, welding slag and surface contamination from structural steel such as H beams, I beams, profiles and welded components.

Q2: What steel structures can be shot blasted?

A2: Typical workpieces include H beams, I beams, angle steel, channel steel, box sections, steel plates, pipes and welded structural components.

Q3: Abrasive is used?

A3: Common blasting media include steel shot and steel grit. The correct abrasive size and hardness depend on the workpiece, required surface profile and blasting specification.

Q4: Can it achieve Sa 2.5?

A4: Yes. Properly designed and operated shot blasting systems can be configured to achieve Sa 2.5 surface cleanliness. The actual result depends on steel condition, abrasive type, blast-wheel configuration, conveyor speed and process parameters.

Q5: Can the machine blast H beams automatically?

A5: Yes. Roller-conveyor H-beam shot blasting machines are designed for continuous automatic processing of H beams and other structural steel profiles.

Q6: Can the shot blasting machine be integrated with a painting line?

A6: Yes. The shot blasting machine can be integrated with abrasive recovery, dust collection, automatic painting and drying equipment to create a complete steel pretreatment line.

Q7: How do I choose the right model?

A7: The key factors are maximum workpiece width, height and length, workpiece weight, production capacity, required surface cleanliness, surface roughness, abrasive type and available workshop space.

Q8: How many blast wheels are required?

A8: The number of blast wheels depends on the workpiece geometry, required surface coverage, conveyor speed and production capacity. Larger or more complex workpieces may require additional blast wheels.

Q9: Does the machine recycle steel shot?

A9: Yes. A complete system normally includes screw conveyors, bucket elevators, abrasive separators and storage hoppers to recover and reuse blasting media.

Q10: Can you manufacture a customized roller conveyor shot blasting machine?

A10: Yes. Machine dimensions, blast-wheel quantity, conveyor configuration, abrasive circulation capacity, dust collection system and automation level can be customized according to the project requirements
