Square Tube Airless Coating Production Line

  • Place of Origin: China
  • Painting: Airless Spray Painting
  • Control Type: PLC control
  • Machine Use: to paint primer, oil paint etc
  • Product description:Square Tube Airless Coating Production Line from Kholee Blast is specially designed for rectangular tube, square tube / pipe coating with primer painting, zinc rich primer
  • INQUIRY

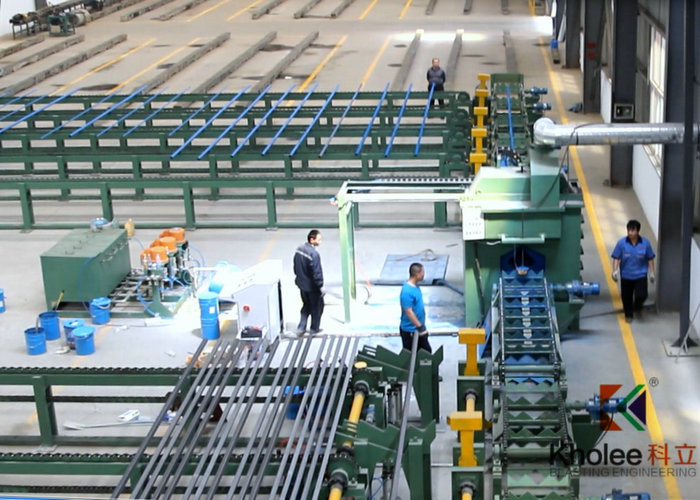

The square / rectangular steel tube airless spray Coating production line is a new developed equipment by our company. It is mainly used to auto spray paint abnormal steel tube like square tube and rectangular tube. It can spray paint to one or several square/rectangular tubes at the same time. Compared with manual spray painting, it has higher productivity, paint oil saving, environmental protection. More important, the paint quality and paint outlook by our equipment are much better than manual spray painting. The whole production line adopts high pressure airless spray painting type.

Square / Rectangular Steel Tube Airless Spray Coating Production Line

Equipment Model

ABT-C550

Working Type

High Pressure Airless Painting

Application Industry

Square Steel Tube, Rectangular Steel Tube

Size of steel Tube

Square Tube

38~100mm

Rectangular Tube

60~120mm

Spray Gun Type

Combined Type Spray Gun

Characters of spray gun

Self-cleaning function

Qty of spray gun

4~10 sets

depends on the size of tube

Paint Pump

- High pressure airless paint sprayer, 3 sets

- Paint Oil Recycle Pump,  1 set

Painting Productivity

1~2pcs/min

Painting Speed

30~45m/min (Speed Variable)

Auxiliary Device

To form production line with steel tube auto airless painting machine

In-feeding slat conveyor before painting

Out-feeding slat conveyor after painting

Steel Tube/Pipe pneumatic turning device

WHISTON Turing Device

Air drying bed

PLC Electrical control system

Work Process Flow

Shot Blasting to Square Tube Dust Cleaning Square Tube Frameworks Square Tube Distribution Delivery by in-feeding slat conveyor Airless Painting Delivery by out-feeding slat conveyor WHISTON Turning Device Air Drying Bed Package
