KL-H2MRC1012 Spinner Hanger Shot Blasting Machine For Die Casting Cleaning

Place of Origin: China
Working Type: Wheel Blasting
Usage: Die Casting Cleaning
Blasting Abrasive: Stainless Steel Cut Wire Shots
Product description：KL-H2MRC1012 Spinner Hanger Shot Blasting Machine specializes in cleaning aluminum die castings, metal castings & precision components. It efficiently removes oxide scales, burrs, oil stains and so on
INQUIRY

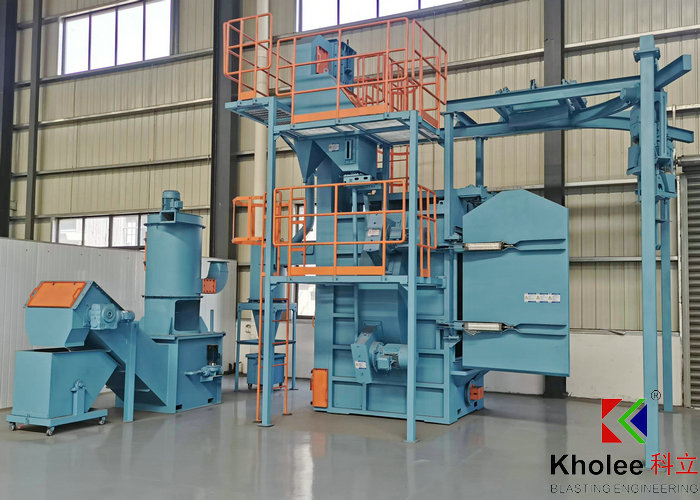

Kholee Blast designs spinner hanger Shot Blasting Machine , which is a specialized surface cleaning equipment designed for aluminum die-castings, metal castings, and precision components cleaning. It utilizes high-speed projected stainless steel Cut Wire Shots to impact the workpiece surface, removing impurities such as oxide scales, burrs, and oil stains, improving surface finish, enhancing coating adhesion, and eliminating internal stress.

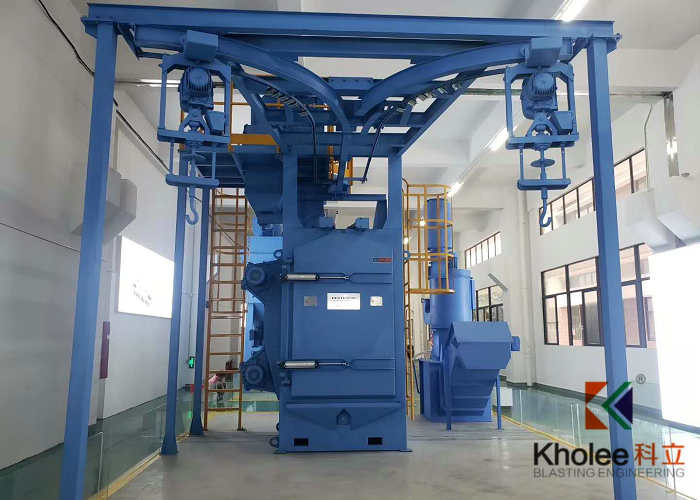

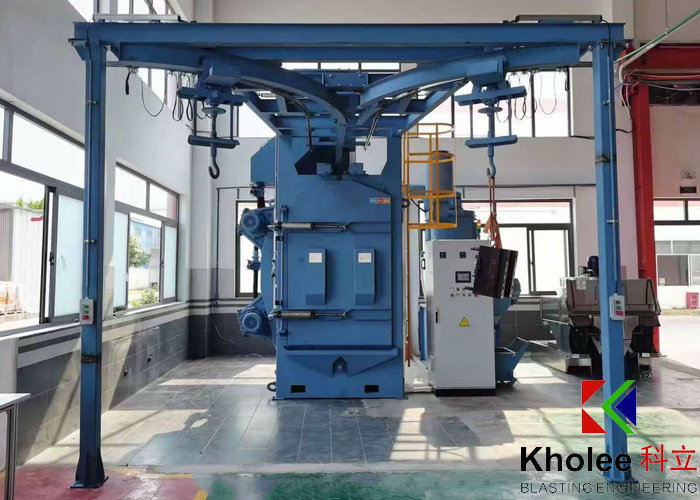

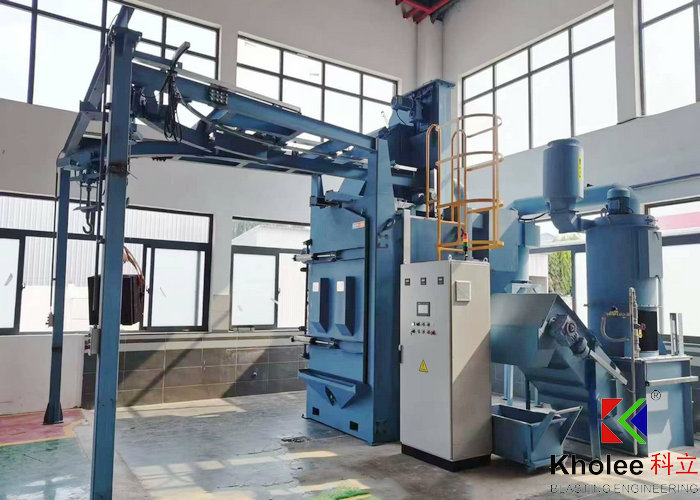

The equipment adopts a monorail conveying system, where workpieces are hung on hangers and undergo multi-directional and uniform cleaning in a rotating shot blasting chamber. It is suitable for processing aluminum die-castings with complex structures or those prone to deformation. The core components of the equipment include high-efficiency blast wheels, wear-resistant guard plates, a separation and dust fume control system, and a PLC + Touch Screen intelligent control module, ensuring high cleaning efficiency, low energy consumption, and compliance with environmental protection standards.

Key Features:

●Adaptive Cleaning Capability: Accommodates aluminum die-castings of various sizes and complex geometries while preventing workpiece deformation or damage

● Automated Processing: Features PLC+ Touch Screen for automatic batch processing

●Eco-Friendly Operation: Integrated venturi-type dust collection system ensures emissions compliance while meeting explosion-proof standards for aluminum processing

● Explosion-Proof Design: Incorporates EX-rated electrical control cabinet and explosion-proof motors, fully compliant with ATEX standards for aluminum component cleaning

Applications:
This system is extensively employed for post-processing of aluminum components across multiple industries including:

● Automotive (engine blocks, transmission housings etc.)

● Precision casting (motor casings, pump components)

● Aerospace (structural fittings, turbine parts)

● Electronics (heat sinks, enclosures)

Name Of Equipment	Spinner Hanger Shot Blasting Machine For Die Casting Cleaning
Model	KL-H2MRC1012
Size of Products	Φ1000×1200mm
Max Loading	≤1,000kgs
Productivity	8~15 min/batch
Noise	≤ 85dB
Dust Emission	≤30mg/m³
Compressed Air Consumption	≤1.0m³/min
Shot Blasting Chamber	Made by Mn13 Steel Plate Bending Welding Hot Blasting Area Protected by Mn13 steel plate 12mm liner Pneumatic Entry & Exit Door, Mn13 Steel Plate Protection L2,000×W1,800×H3,000mm
Blasting Wheel Variable Speed by Inverter	11kw×2 180kg/min×2
Monorail System	Trolley + Hoist Loading 1000kgs/Batch Self Rotation 0.37kw×2
Bucket Elevator	24t/hr-3kw
Screw Conveyor	24t/hr-2.2kw
Air Wash Seperator	24 t/hr
Venturi Wet Dust Collector	11KW - 6000m3/hr Water Pump Mud Cleaning System
Electrical Control System	380V/415V/440V, 50~60Hz, 3Ph PLC + Touch Screen / Auto Manual Center Control Air breaker, contactor, time relay, thermal relay, button, switch etc. Explosion-Proof Control Cabinet with heat cooling fins The software interface has manual, auto and parameter setting. Operation interface can alarm when abnormal happens. In auto interface, the touch screen can show running status such as electrical current, frequency, time etc during operation.
Total Power	Approx. 46kw
Size of Equipment	5000mm×4300mm×5700mm
