The eco-friendly air-cooled dehumidifiers are used for drying air of up to 95% relative humidity (RH) with temperatures from +15ºc to +40ºc. It is widely used in the area of southeast asia, south america with tropic and subtropic climate. The eco-friendly dehumidifier adopts R134A / R407C as refrigerant. Compared with R22 freon, R134A / R407C is no harmful to ozonosphere.
The applications are numerous and wide spread. Below are some examples:
- surface treatment during internal blasting and painting of tanks
- shipping industry, both for permanent and temporary applications
- controlling humidity levels in production processes
- protection of equipment sensitive to corrosion
- climatic improvements in damp areas

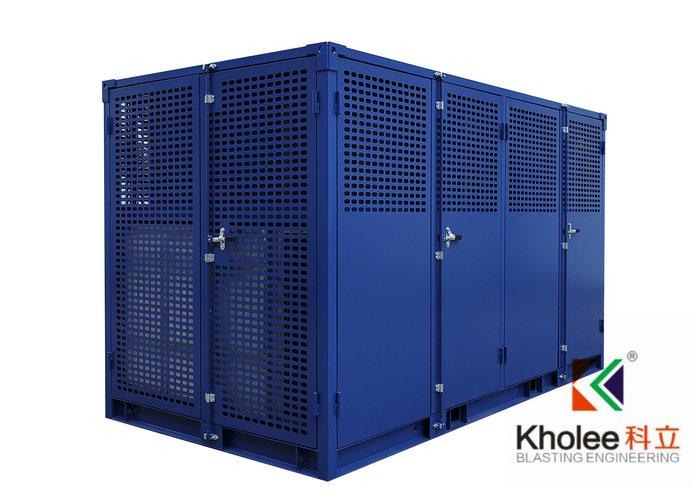

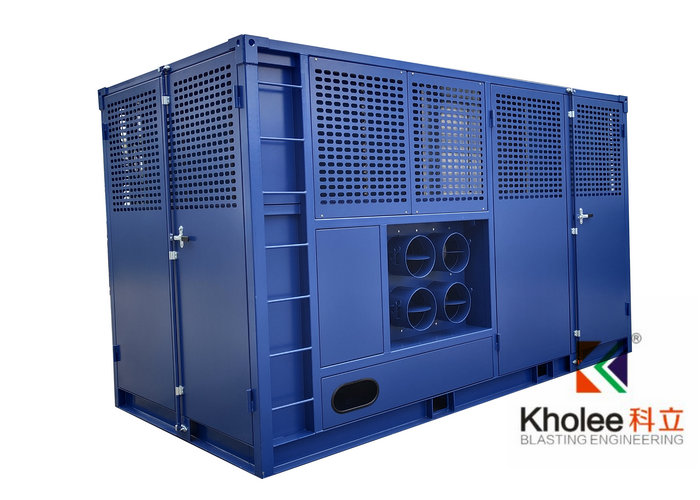

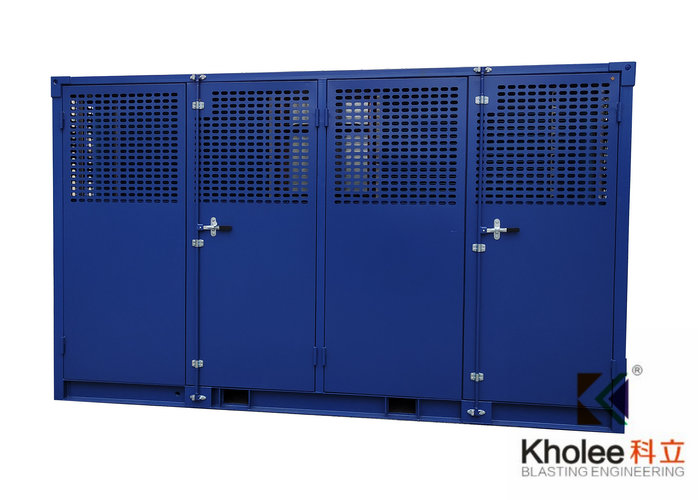

Eco-friendly Air Cooled Dehumidifier is delivered as a complete unit with fans, filters, condenser, evaporator, compressor and controls. The dehumidifier is ready for site installation and connection to standard-size ducting. Each dehumidifier will be custom designed according to the local conditions and the needs of the customer. The eco-friendly air cooled dehumidifier adopts R134A / R407C as refrigerant instead of R22, which is of no harmful to ozone layers. It meets the environmental protection requirements from developed countries.
|
Power |
3Ph; 380V; 50Hz |
|
|
Control Type |
PLC Auto Control + Manual Control |
|
|
Dehumidifying Air Volume |
12,000 m3/h |
|
|
Centrifugal Air Fan |
15kw |
|
|
Air Outlet Extra Pressure |
≥2,000Pa |
|
|
Condenser Cooling Type |
Air Cooling |
|
|
Cooling Capacity |
209,750Kcal/hr, 243.9Kw/hr |
|
|
Refrigerant |
R134A /R407C, Eco-friendly refrigerant to Ozonosphere |
|
|
Heating Type |
45kw Electrical Heating by Stainless Steel Heater |
|
|
Temperature Control Type |
High sensitive temperature sensor +PLC auto control +Touch Screen |
|
|
Air Inlet Condition |
20°C~40°C / RH95%~60% |
|
|
Air Outlet Condition |
Temperature ≤25°C±3°C RH≤45% |
|
|
Chilling Unloading |
4 Grade, (25%~50%~75%~100%) Auto unloading |
|
|
Dew Point |
9°C~13°C |
|
|
Evaporator |
Copper tube + Hydrophilic Aluminium Fins with stainless steel casing + Anti-Corrosive Coating Blue |
|
|
Condenser |
Copper tube + Aluminum fins with stainless steel casing + Anti-Corrosive Coating Blue When climate temperature is 40°C, high temperature ≤2.0Mpa |
|
|
Condenser Fan |
5.5kw×2 |
|
|
Structure of Equipment Container |
Steel Box Structure |
|
|
Air outlet Size |
Φ280mm×4 |
|
|
Electrical Control System |
PLC control + Touch Screen IP54 sealant + protection of electrical linkage, phase default, high and low voltage, overload etc Protection for electric and pneumatic separately Self-diagnosis Siemens/Mitsubishi PLC |
|
|
Temperature & humidity control and display |
4 Grade auto unloading refrigerating + 4 grade auto temperature control electrical heating + Temperature show at air outlet |
|
|
Fault display |
Phase sequence protection / compressor fault/ overload display / no air flow in ducting alarming (reserved) / overheating of electrical heater alarming etc. |
|
|
Air inlet filtering |
Stainless Steel Casing + Aluminium Alloy Filtering Net |
|
|
Weight |
≤ 4.2 tons |
|
|
Outsize of equipment |
≤3680mm x2200mm x 2550mm (L x W x H) |
|
|
Power of equipment |
131kw |
|
|
Paint Color of dehumidifier |
Blue, Red, Yellow |
|
