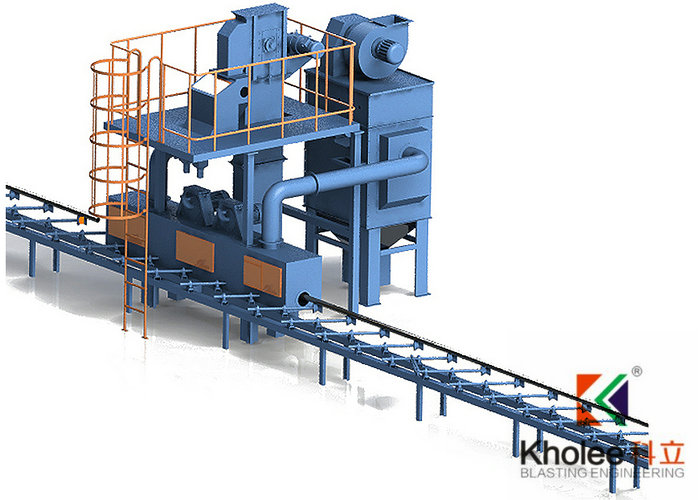

KLGP300-2 Steel Pipe Shot Blasting Machine

Steel Pipe Shot Blasting Machine

Automatic Steel Pipe Shot Blasting Machine for External Surface Preparation

Steel Pipe Shot Blasting Machine is an automatic wheel blasting system designed for cleaning and surface preparation of steel pipes, steel tubes and cylindrical metal workpieces.

Using high-speed Steel Shot or Steel Grit propelled by centrifugal blast wheels, the machine removes rust, mill scale, oxide layers, welding slag and other surface contaminants while creating a controlled surface profile for subsequent painting, coating or corrosion protection.

Kholee Blast designs and manufactures custom steel pipe shot blasting machines for external pipe blasting. Machine configuration, pipe diameter, pipe length, blast wheel quantity, conveying system and production capacity can be engineered according to the customer's workpieces and production requirements.

What Is a Steel Pipe Shot Blasting Machine?

A steel pipe shot blasting machine is an automated industrial surface preparation system used to clean and prepare the external surfaces of steel pipes by high-velocity blast wheels before painting, coating, lining, fabrication or delivery.

The machine typically integrates:

In-feeding roller conveyor | Shot blasting chamber | High-efficiency blast wheels | Abrasive circulation and recovery system | Dust collection system | Out-feeding roller conveyor | Electrical control system

This configuration is particularly suitable for continuous production of steel pipes, pipeline sections, structural pipes, oil and gas pipes, water pipes and fabricated tubular components, providing efficient removal of rust, mill scale, oxide layers and other surface contaminants before subsequent coating or painting.

Benefits of Shot Blasting for Steel Pipe?

Shot blasting provides a controlled mechanical surface preparation process for steel pipe.

1. Removes Rust and Mill Scale

High-velocity abrasive particles impact the steel surface to remove rust, oxide layers and mill scale.

2. Creates a Uniform Surface

The blasting process produces a consistent roughened surface that can improve coating adhesion when the blasting parameters are correctly selected.

3. Continuous Production

Roller-conveyor systems allow steel pipe to pass continuously through the blasting chamber, reducing manual handling.

4. Consistent Cleaning Quality

Multiple blast wheels can be positioned to treat different surfaces of complex steel pipes.

5. Automatic Abrasive Recycling

The abrasive recovery system collects, separates and returns reusable steel shot to the blasting system.

6. Reduced Manual Surface Preparation

Automation reduces dependence on manual abrasive cleaning for high-volume steel pipe production.

7. Lower Labor Requirements

Automatic conveying, blasting and abrasive recovery reduce the amount of manual abrasive blasting and material handling required, helping improve production consistency and operational efficiency.

How Does a Steel Pipe Shot Blasting Machine Work?

A typical automated system consists of:

Loading → Roller Conveyor → Shot Blasting Chamber → Blast Wheels → Abrasive Recovery → Separator → Dust Collector → Clean Pipe → Unloading

This closed-loop abrasive recovery system reduces abrasive consumption and helps maintain stable blasting performance.

Steel Pipe Shot Blasting Machine Applications

Oil & Gas Industry | Water Pipeline | Steel Pipe Manufacturing | Shipbuilding | Structural Steel | Pressure Vessel & Boiler Manufacturing

Surface Preparation: Sa 2.5 for Pipe Coating

One of the main purposes of steel pipe shot blasting is to prepare the steel surface before painting or protective coating.

Kholee Blast's pipe shot blasting machines can be designed to achieve Sa 2.5 surface cleanliness, with typical blasted surface roughness around Ra 20–75 μm, depending on abrasive type, blasting intensity, pipe material and process parameters.

The resulting anchor profile improves mechanical adhesion between the steel substrate and the coating.

For applications requiring a different cleanliness or surface profile, the blasting parameters can be adjusted according to the customer's coating specification.

Typical Technical Specification

How to Choose a Steel Pipe Shot Blasting Machine?

Before selecting a pipe blasting machine, Kholee Blast recommends providing the following information.

1. Pipe Diameter

What are the minimum and maximum outside diameters?

2. Pipe Length

What is the maximum pipe length?

3. Pipe Weight

Maximum weight of one pipe and average pipe weight.

4. Surface Condition

For example: New mill scale | Rust | Heavy oxide | Existing paint

5. Required Surface Cleanliness

For example: Sa 2.5 / Sa 3

6. Required Surface Roughness

For example: Ra 20–75 μm

7. Production Capacity: pipes per hour | Tons per day | Tons per month

This information allows Kholee Blast engineers to select the appropriate blast wheel arrangement, roller conveyor, abrasive recovery system and dust collector.

Frequently Asked Questions

Q1：What is a steel pipe shot blasting machine?

A1: A steel pipe shot blasting machine is an automatic surface preparation machine that uses centrifugal blast wheels to propel steel shot or steel grit onto steel pipes. It removes rust, mill scale, oxide and creates a controlled surface profile for coating.

Q2: Can the machine blast the outside of steel pipes?

A2: Yes. Kholee Blast manufactures external steel pipe shot blasting machines using roller conveyor systems that rotate and transport pipes through the blasting chamber.

Q3: Can steel pipe shot blasting achieve Sa 2.5?

A3: Yes. The machine can be configured for Sa 2.5 surface cleanliness. Actual results depend on pipe condition, abrasive, blasting intensity, conveying speed and process settings. Kholee Blast's published external pipe machines specify Sa 2.5 performance.

Q4: What abrasive is used?

A4: The machine normally uses steel shot or steel grit. The abrasive type and size should be selected according to pipe material, initial surface condition and required surface profile.

Q5: What pipe sizes can be processed?

A5: The machine can be customized for different pipe diameters and lengths. Kholee Blast's current published models cover approximately Φ300–Φ4,000 mm for external pipe blasting, while other manufacturers also offer smaller-diameter configurations.

Q6: Can the machine be integrated with a pipe coating line?

A6: Yes. The pipe shot blasting machine can be designed as part of an automated pipe blasting and painting/coating line, including conveying, abrasive recovery, dust collection and downstream handling.
