KLGP1220-2 Steel Pipe Shot Blasting Machine

Place Of Origin: China
Working Type: Wheel Blasting
Usage: blast cleaning
Blasting Abrasive： Steel Shots & Grits
Product description：KLGP1220-2 steel pipe shot blasting machine / pipe blaster from Kholee Blast China is used to clean tubes Φ1220mm max in diameter. By blasting, it can remove rust, oxide layers from external surface o
INQUIRY

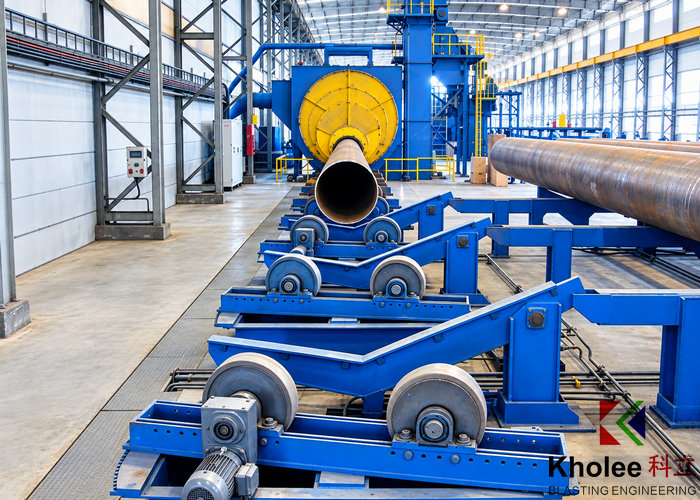

Steel Pipe Shot Blasting Machine is used to clean external surface of steel pipe, round bar, drilling rod etc. It can clean rust, oxide layers, paint film and intensify. The equipment adopts V conveying roller system or rubber wheel to delivery steel pipe. When steel pipe moves forward on conveyor, it will rotate at the same time. When steel pipe passes through blasting area, the high speed of Steel Shots will hit the surface of steel tube and do blasting. The equipment is widely used in petroleum oil & gas, steel pipe stockholders, chemical, grid engineering and boiler etc.

The equipment is comprised of in-feeding roller conveyor, shot blasting chamber, blasting turbine, shots recycle system, dust removing system, out-feeding roller conveyor and electrical control system etc

Steel Pipe Shot Blasting Machine
Model	KLGP1220-2
Size of Tubes	Φ1220×12,000mm
Loading of Roller Conveyor	1,000kg/m
Working Speed	1.0~3.0m/min
Blasting Wheel	15kw×2
Abrasive Flow	250kg/min×2
Abrasive Recycle System	30 t/hr
Dust Air Volume	12,600m³/hr
Surface Quality After Blasting	Sa 2.5 GB8923-88(ISO8501)
Roughness After Blasting	Ra 20-75
Dust Emission Density	80mg/m³
Noise Level	≤85 dB
Total Power	59kw
Equipment Size L×W×H	26500×4500×5500mm
