KLGP2000-2 Steel Pipe Shot Blasting Machine

KLGP2000-2 Steel Pipe Shot Blasting Machine

Automatic Steel Pipe Shot Blasting Machine for External Surface Preparation

Steel pipe shot blasting machine is an automatic wheel‑blasting system built for cleaning and surface preparation of steel pipes, steel tubes and cylindrical metal workpieces.

Powered by centrifugal blast wheels that accelerate Steel Shot or Steel Grit at high velocity, this equipment eliminates rust, mill scale, oxide layers, welding slag and other surface contaminants. It also generates a uniform, controlled surface profile ideal for subsequent painting, coating and anti‑corrosion treatments.

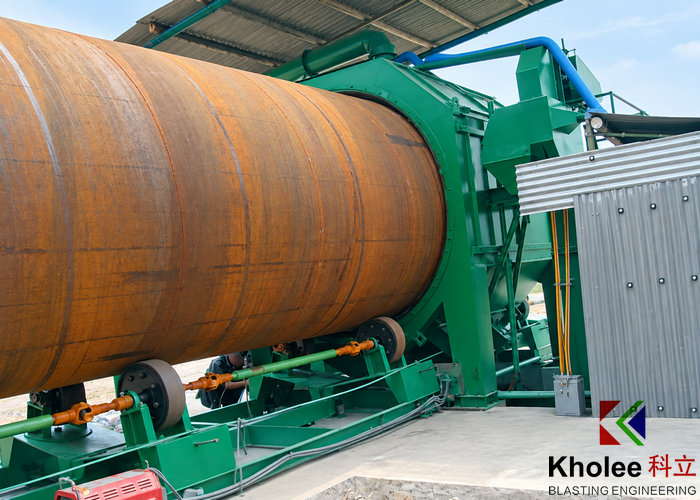

KLGP2000-2 Steel Pipe Shot Blasting Machine by Kholee Blast is designed for automated external surface preparation of large-diameter steel pipes and tubes up to Φ1220mm. High-speed blast wheels effectively remove rust, mill scale and oxide layers from the external pipe surface, creating a clean and uniform surface for subsequent painting, coating and corrosion protection.

What Is a Steel Pipe Shot Blasting Machine?

A steel pipe shot blasting machine is an automated industrial surface‑preparation system. It cleans and conditions the external surfaces of steel pipes via high‑velocity blast wheels prior to painting, coating, lining, fabrication or shipment.

Typical system integration includes:

In‑feeding roller conveyor | Shot blasting chamber | High‑efficiency blast wheels | Abrasive circulation & recovery system | Dust collection system | Out‑feeding roller conveyor | Electrical control system

This setup is optimised for continuous‑run production of steel pipes, pipeline segments, structural pipes, oil & gas pipes, water pipes and fabricated tubular components. It efficiently removes rust, mill scale, oxide layers and other surface contaminants to prepare substrates for downstream painting and coating operations.

Benefits of Shot Blasting for Steel Pipe?

Shot blasting delivers a controlled mechanical surface‑preparation process for steel pipes.

1. Removes Rust and Mill Scale

High‑velocity abrasive particles strike the steel surface to strip away rust, oxide layers and mill scale.

2. Generates Uniform Surface Profile

The blasting process creates a consistent roughened surface. With properly configured blasting parameters, it significantly boosts coating adhesion performance.

3. Supports Continuous‑Run Production

Roller‑conveyor designs enable steel pipes to travel continuously through the blast chamber and minimise manual workpiece handling.

4. Consistant Cleaning Quality

Multiple blast wheels are strategically arranged to fully treat varied surfaces of complex steel pipe workpieces, delivering stable cleaning results.

5. Automatic Abrasive Recycling

The abrasive recovery system collects, separates and feeds reusable steel shot back into the blasting circuit for repeated operation.

6. Reduce Manual Surface Preparation

Automation cuts reliance on labour‑intensive manual abrasive cleaning for high‑volume steel pipe manufacturing.

7. Lower Labour Input

Automated conveying, blasting and abrasive recovery eliminate extensive manual blasting and material handling. This improves both production consistency and overall operational efficiency.

How Does a Steel Pipe Shot Blasting Machine Work?

A typical automated system consists of:

Loading → Roller Conveyor → Shot Blasting Chamber → Blast Wheels → Abrasive Recovery → Separator → Dust Collector → Clean Pipe → Unloading

This closed-loop abrasive recovery system reduces abrasive consumption and helps maintain stable blasting performance.

Steel Pipe Shot Blasting Machine Applications

Oil & Gas Industry | Water Pipeline | Steel Pipe Manufacturing | Shipbuilding | Structural Steel | Pressure Vessel & Boiler Manufacturing

Surface Preparation: Sa 2.5 for Pipe Coating

One primary purpose of steel pipe shot blasting is surface conditioning of steel substrates prior to painting or protective coating application.

Kholee Blast pipe shot blasting machines can be engineered to achieve Sa 2.5 surface cleanliness standard. Typical blast induced surface roughness ranges from Ra 20‑75 μm, subject to abrasive media type, blasting intensity, pipe base material and process parameters.

The formed anchor profile enhances mechanical bonding between the steel substrate and applied coating layers.

For projects requiring alternative cleanliness grades or distinct surface profiles, blasting parameters can be fine‑tuned to match customers' exact coating specifications.

Typical Technical Specification

How to Choose a Steel Pipe Shot Blasting Machine?

Before selecting a pipe blasting machine, Kholee Blast recommends providing the following information.

1. Pipe Diameter

What are the minimum and maximum outside diameters?

2. Pipe Length

What is the maximum pipe length?

3. Pipe Weight

Maximum weight of one pipe and average pipe weight.

4. Surface Condition

For example: New mill scale | Rust | Heavy oxide | Existing paint

5. Required Surface Cleanliness

For example: Sa 2.5 / Sa 3

6. Required Surface Roughness

For example: Ra 20–75 μm

7. Production Capacity: pipes per hour | Tons per day | Tons per month

This information allows Kholee Blast engineers to select the appropriate blast wheel arrangement, roller conveyor, abrasive recovery system and dust collector.

Frequently Asked Questions

Q1: What is a steel pipe shot blasting machine?

A1: A steel pipe shot blasting machine is an automated surface preparation system. It employs centrifugal blast wheels to accelerate steel shot or steel grit onto steel pipe surfaces, removing rust, mill scale and oxides while generating a controlled surface profile for subsequent coating applications.

Q2: Can the machine blast the external surface of steel pipes?

A2: Yes. Kholee Blast manufactures external steel pipe shot blasting machines equipped with roller conveyor systems. The conveyors rotate and carry steel pipes continuously through the blasting chamber.

Q3: Can steel pipe shot blasting achieve Sa 2.5?

A3: Yes. The equipment can be configured to reach Sa 2.5 surface cleanliness standard. Final blasting results depend on pipe base condition, abrasive media, blasting intensity, conveyor speed and process parameters. Kholee Blast’s external pipe blasting machines are rated for Sa 2.5 performance.

Q4: What abrasive is used?

A4: This machine typically runs on steel shot or steel grit. Abrasive type and particle size need to be selected based on pipe material, original surface condition and target surface profile.

Q5: What pipe sizes can be processed?

A5: The machine can be custom-engineered to handle various pipe diameters and lengths. Kholee Blast’s standard external pipe blasting models cover a diameter range of Φ300 mm to Φ4000 mm. Smaller diameter configurations are also available.

Q6: Can the machine be integrated with a pipe coating line?

A6: Yes. The pipe shot blasting machine can be designed as one segment of a fully automated pipe blasting & coating line, integrating material conveying, abrasive recovery, dust collection and downstream handling equipment.
