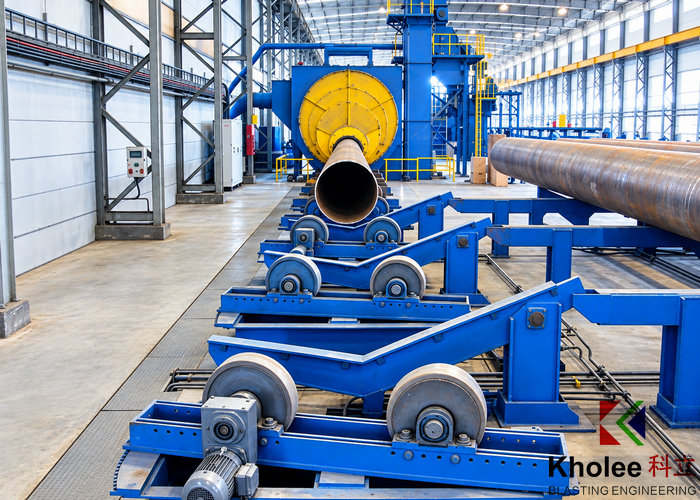

Automatic Steel Tube Shot Blasting Machine for External Surface Preparation

Steel Tube Shot Blasting Machine is an automatic wheel blasting system designed for cleaning and surface preparation of steel Tubes, steel tubes and cylindrical metal workpieces.

Using high-speed Steel Shot or Steel Grit propelled by centrifugal blast wheels, the machine removes rust, mill scale, oxide layers, welding slag and other surface contaminants while creating a controlled surface profile for subsequent painting, coating or corrosion protection.

Kholee Blast designs and manufactures custom steel Tube shot blasting machines for external Tube blasting. Machine configuration, Tube diameter, Tube length, blast wheel quantity, conveying system and production capacity can be engineered according to the customer's workpieces and production requirements.

What Is a Steel Tube Shot Blasting Machine?

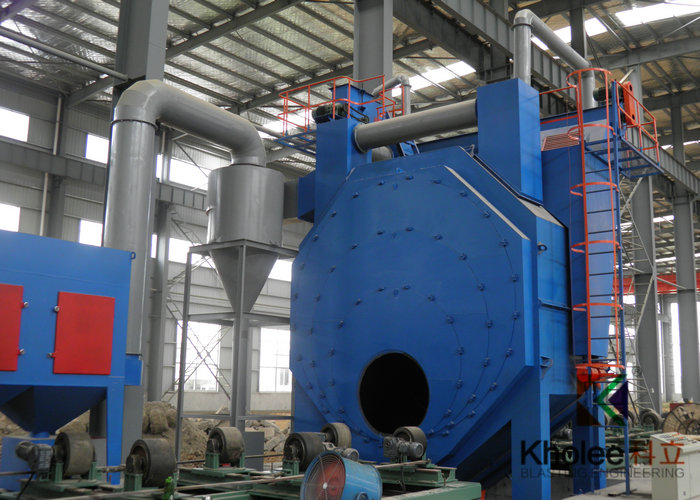

A steel Tube shot blasting machine is an automated industrial surface preparation system used to clean and prepare the external surfaces of steel Tubes by high-velocity blast wheels before painting, coating, lining, fabrication or delivery.

The machine typically integrates:

In-feeding roller conveyor | Shot blasting chamber | High-efficiency blast wheels | Abrasive circulation and recovery system | Dust collection system | Out-feeding roller conveyor | Electrical control system

This configuration is particularly suitable for continuous production of steel Tubes, Tubeline sections, structural Tubes, oil and gas Tubes, water Tubes and fabricated tubular components, providing efficient removal of rust, mill scale, oxide layers and other surface contaminants before subsequent coating or painting.

Benefits of Shot Blasting for Steel Tube?

Shot blasting provides a controlled mechanical surface preparation process for steel Tube.

1. Removes Rust and Mill Scale

High-velocity abrasive particles impact the steel surface to remove rust, oxide layers and mill scale.

2. Creates a Uniform Surface

The blasting process produces a consistent roughened surface that can improve coating adhesion when the blasting parameters are correctly selected.

3. Continuous Production

Roller-conveyor systems allow steel Tube to pass continuously through the blasting chamber, reducing manual handling.

4. Consistent Cleaning Quality

Multiple blast wheels can be positioned to treat different surfaces of complex steel Tubes.

5. Automatic Abrasive Recycling

The abrasive recovery system collects, separates and returns reusable steel shot to the blasting system.

6. Reduced Manual Surface Preparation

Automation reduces dependence on manual abrasive cleaning for high-volume steel Tube production.

7. Lower Labor Requirements

Automatic conveying, blasting and abrasive recovery reduce the amount of manual abrasive blasting and material handling required, helping improve production consistency and operational efficiency.

How Does a Steel Tube Shot Blasting Machine Work?

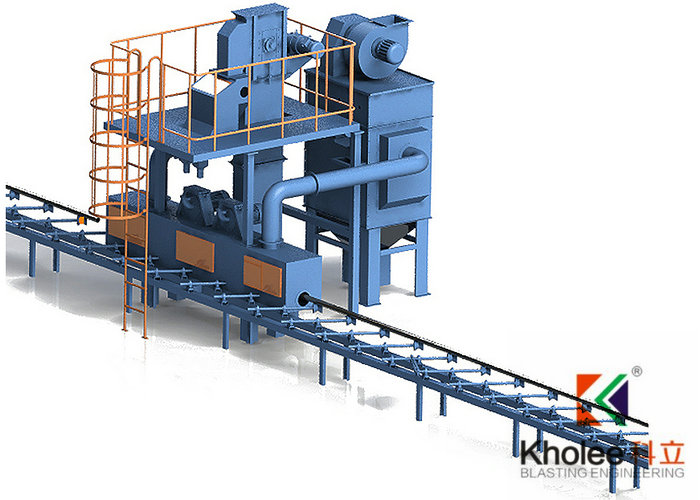

A typical automated system consists of:

Loading → Roller Conveyor → Shot Blasting Chamber → Blast Wheels → Abrasive Recovery → Separator → Dust Collector → Clean Tube → Unloading

This closed-loop abrasive recovery system reduces abrasive consumption and helps maintain stable blasting performance.

Steel Tube Shot Blasting Machine Applications

Oil & Gas Industry | Water Tubeline | Steel Tube Manufacturing | Shipbuilding | Structural Steel | Pressure Vessel & Boiler Manufacturing

Surface Preparation: Sa 2.5 for Tube Coating

One of the main purposes of steel Tube shot blasting is to prepare the steel surface before painting or protective coating.

Kholee Blast's Tube shot blasting machines can be designed to achieve Sa 2.5 surface cleanliness, with typical blasted surface roughness around Ra 20–75 μm, depending on abrasive type, blasting intensity, Tube material and process parameters.

The resulting anchor profile improves mechanical adhesion between the steel substrate and the coating.

For applications requiring a different cleanliness or surface profile, the blasting parameters can be adjusted according to the customer's coating specification.

Typical Technical Specification

How to Choose a Steel Tube Shot Blasting Machine?

Before selecting a Tube blasting machine, Kholee Blast recommends providing the following information.

1. Tube Diameter

What are the minimum and maximum outside diameters?

2. Tube Length

What is the maximum Tube length?

3. Tube Weight

Maximum weight of one Tube and average Tube weight.

4. Surface Condition

For example: New mill scale | Rust | Heavy oxide | Existing paint

5. Required Surface Cleanliness

For example: Sa 2.5 / Sa 3

6. Required Surface Roughness

For example: Ra 20–75 μm

7. Production Capacity: Tubes per hour | Tons per day | Tons per month

This information allows Kholee Blast engineers to select the appropriate blast wheel arrangement, roller conveyor, abrasive recovery system and dust collector.

Frequently Asked Questions

Q1：What is a steel Tube shot blasting machine?

A1: A steel Tube shot blasting machine is an automatic surface preparation machine that uses centrifugal blast wheels to propel steel shot or steel grit onto steel Tubes. It removes rust, mill scale, oxide and creates a controlled surface profile for coating.

Q2: Can the machine blast the outside of steel Tubes?

A2: Yes. Kholee Blast manufactures external steel Tube shot blasting machines using roller conveyor systems that rotate and transport Tubes through the blasting chamber.

Q3: Can steel Tube shot blasting achieve Sa 2.5?

A3: Yes. The machine can be configured for Sa 2.5 surface cleanliness. Actual results depend on Tube condition, abrasive, blasting intensity, conveying speed and process settings. Kholee Blast's published external Tube machines specify Sa 2.5 performance.

Q4: What abrasive is used?

A4: The machine normally uses steel shot or steel grit. The abrasive type and size should be selected according to Tube material, initial surface condition and required surface profile.

Q5: What Tube sizes can be processed?

A5: The machine can be customized for different Tube diameters and lengths. Kholee Blast's current published models cover approximately Φ300–Φ4,000 mm for external Tube blasting, while other manufacturers also offer smaller-diameter configurations.

Q6: Can the machine be integrated with a Tube coating line?

A6: Yes. The Tube shot blasting machine can be designed as part of an automated Tube blasting and painting/coating line, including conveying, abrasive recovery, dust collection and downstream handling.
